Back-lit Silicone Button KeyShot Tutorial

Last Updated: September 6, 2021 • 5 min read

Let’s face it, some materials are just a lot more difficult to render in KeyShot than others. One particularly challenging material is a back-lit silicone button. Many products have a soft-touch silicone button or translucent rubber button on them. Now, add a little LED behind this button and that’s one challenging material to make in KeyShot. Finally, if you want to animate this light, either blinking or changing colors, then things really get tricky.

My secret button material

Over the years, I’ve had one client in particular that produces products with back-lit silicone buttons. The jobs I did for this client required me to find a way to create a convincing looking back-lit silicone button material in KeyShot. Additionally, it needed to be easy to make changes to as well as animate.

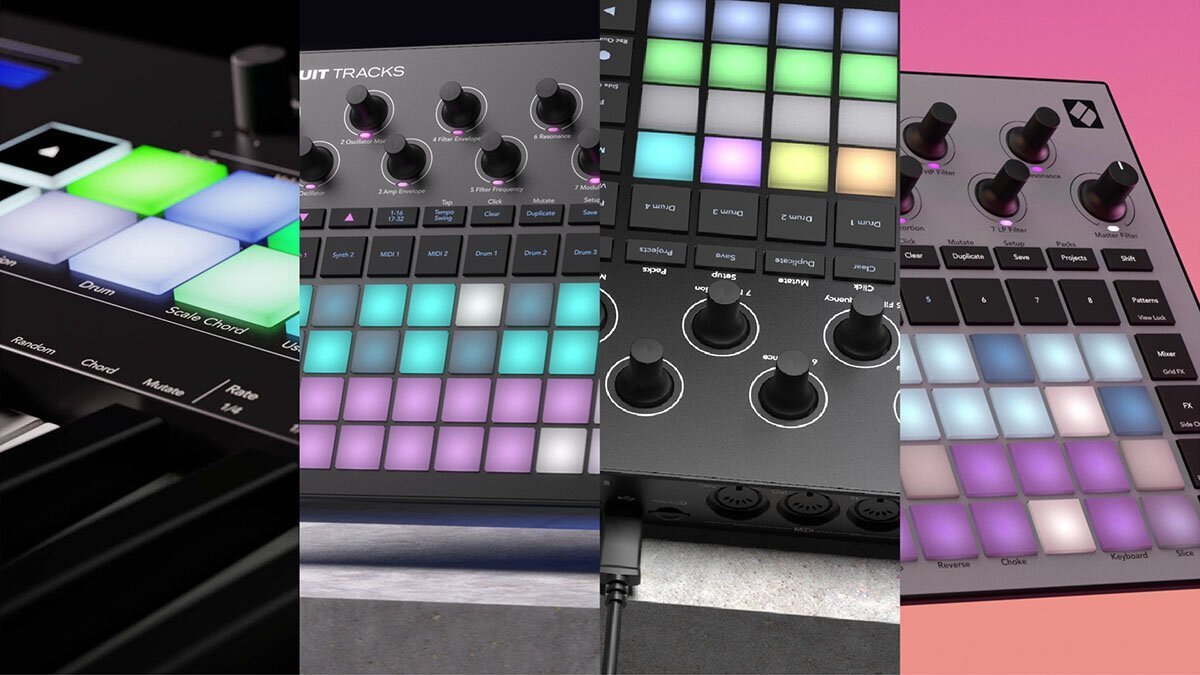

Examples of back-lit silicone buttons I’ve created for past projects

Video Tutorial

After spending countless hours of experimenting and refining the silicone button material, I finally found what I think is the best way to create this material in KeyShot. And I’m going to show you how I do it.

Want to follow along with the tutorial? Click below to watch.

Backlit Silicone Buttons

Challenges with rendering back-lit silicone buttons

There are many reasons this is a challenging material to render in KeyShot. Here are a few I ran into when trying to come up with a solution on my own:

  1. Not all client CAD models contain accurate internal PCBs or geometry for LED lights
  2. Using physical lights inside of the model slows down render times
  3. Lights within the model tend to cast unwanted light through seams and button holes
  4. KeyShot’s silicone material does not let light transmit completely through it
  5. Cloudy plastic was too slow to render
  6. Placing a light behind a silicone material makes the silicone grainy and takes longer to render
  7. Animating buttons in complex patterns is too difficult or tedious to do manually
  8. Making the button look realistic and soft is difficult
  9. Optimizing the material to render quickly is important for animations

As you can see, there were many roadblocks that arose when I initially tried to create this material. Luckily, necessity is the mother of invention, no? Because I had to find a solution, I did.

My approach to solving this challenging material in KeyShot

I ran into challenges when trying to transmit light through this material, like the actual product does in real life. So, I decided to take a different approach. Using a light material as a label on top of the button material would get around the transmission issue I mentioned. And since emissive is the only light-emitting material in KeyShot that can be used as a label, that narrowed things down.

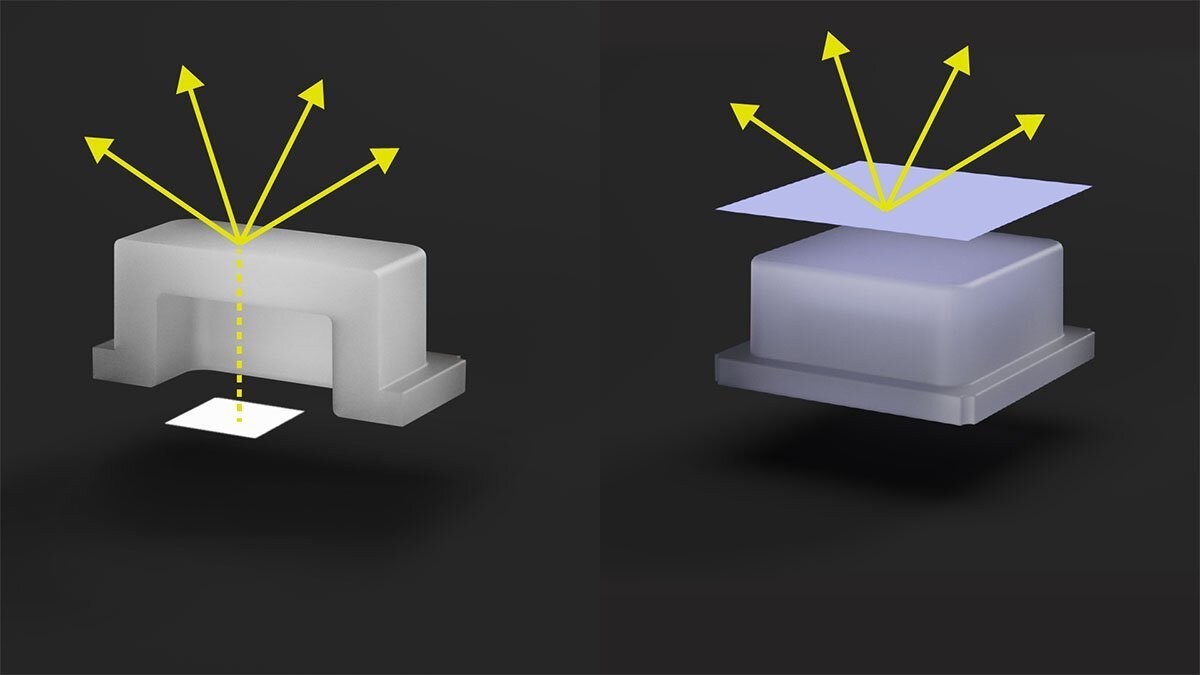

Light transmitting from an LED through a button (left) vs Light emitting from an emissive label on a button (right)
Light transmitting from an LED through a button (left) vs Light emitting from an emissive label on a button (right)

Next, I realized that in real-life, a light has a bright center. This creates a gradient as light moves away from the point of emission. Since the light was emitting from the top of the button, I used a gradient mask to make it appear to be buried within the button.

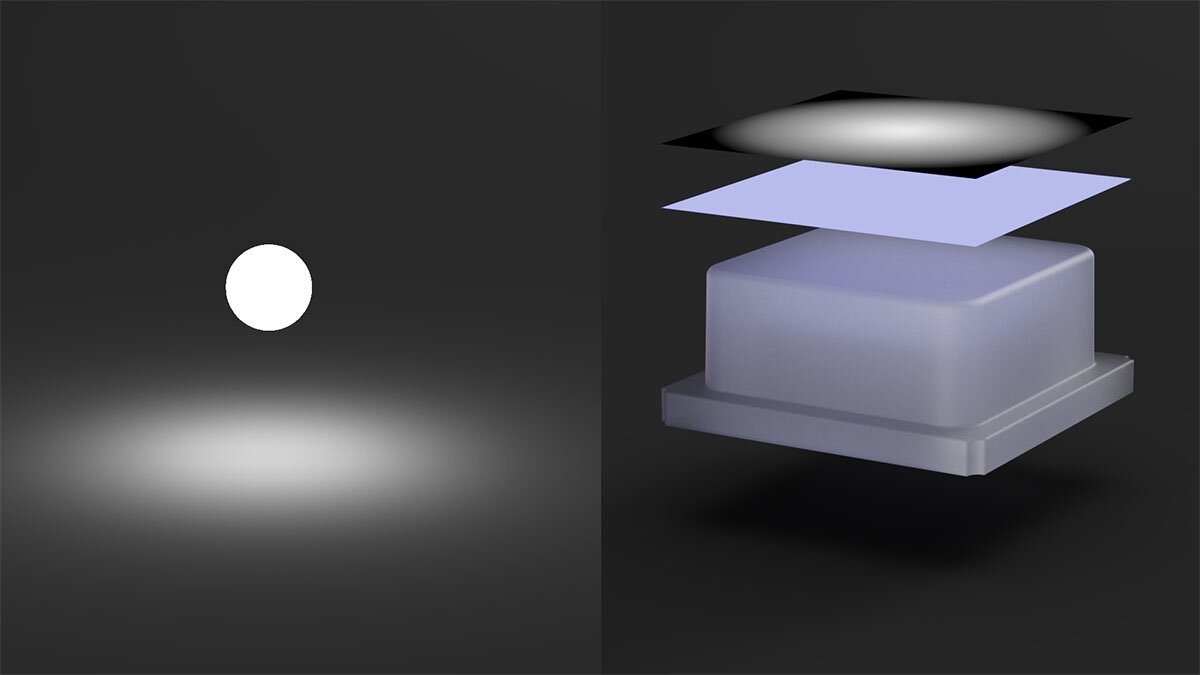

Light falloff effect demonstrated (left) vs Using an opacity map to give illusion of falloff to mask emissive label (right)
Light falloff effect demonstrated (left) vs Using an opacity map to give illusion of falloff to mask emissive label (right)

I used the same gradient approach mentioned above to control the color of the silicone. By using both an emissive label and a silicone material, I was able to have sufficient control over color and brightness of the material. I chose to use the translucent material for the base since that was the only material that gave me the soft appearance I wanted. It also renders more quickly than a transparent material like cloudy plastic.

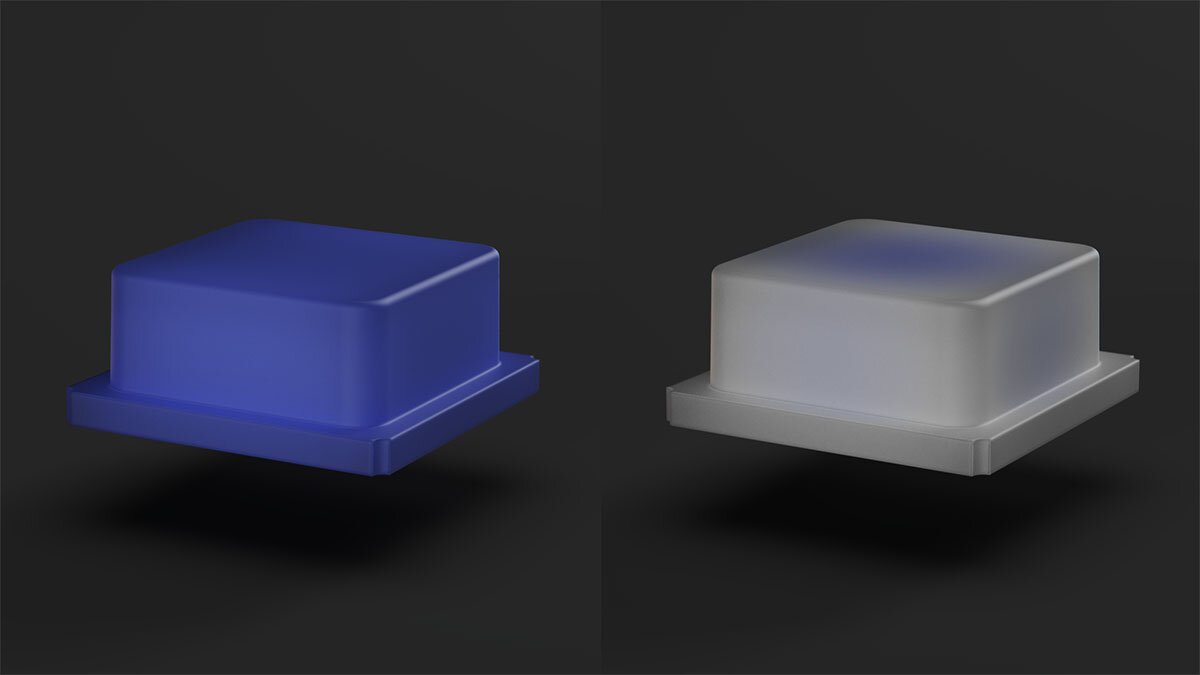

Translucent material with solid color (left) vs Translucent material with opacity map to control saturation (right)
Translucent material with solid color (left) vs Translucent material with opacity map to control saturation (right)
KeyShot rendering roadmap
Level up your KeyShot renderings skills!
Download the free step-by-step framework I use to create better renderings.

Animated video maps

Finally, when it came to animating the buttons, I decided to rely on video maps. If you haven’t learned about what video maps can do for you, be sure to learn about those here. By using a video map texture, I could load an image sequence to drive the color of the buttons.

I had a friend create some animated colored sequences in After Effects for me. This would take care of all the blinking, flashing and sequencing of the buttons. What I love about this approach, is ease of updating. Once the video map was loaded, changes could be made to it. As long as the frame count did not change, the animation would automagically update in KeyShot.

Give it a try!

I decided to create a tutorial sharing how I set this silicone button material up in KeyShot. It may be a bit niche, but can get you unstuck if you’re in need of help. The material graph for this material is quite simple, but also not intuitive. Hopefully, this will give you some ideas or new ways to approach solving challenging materials in KeyShot.

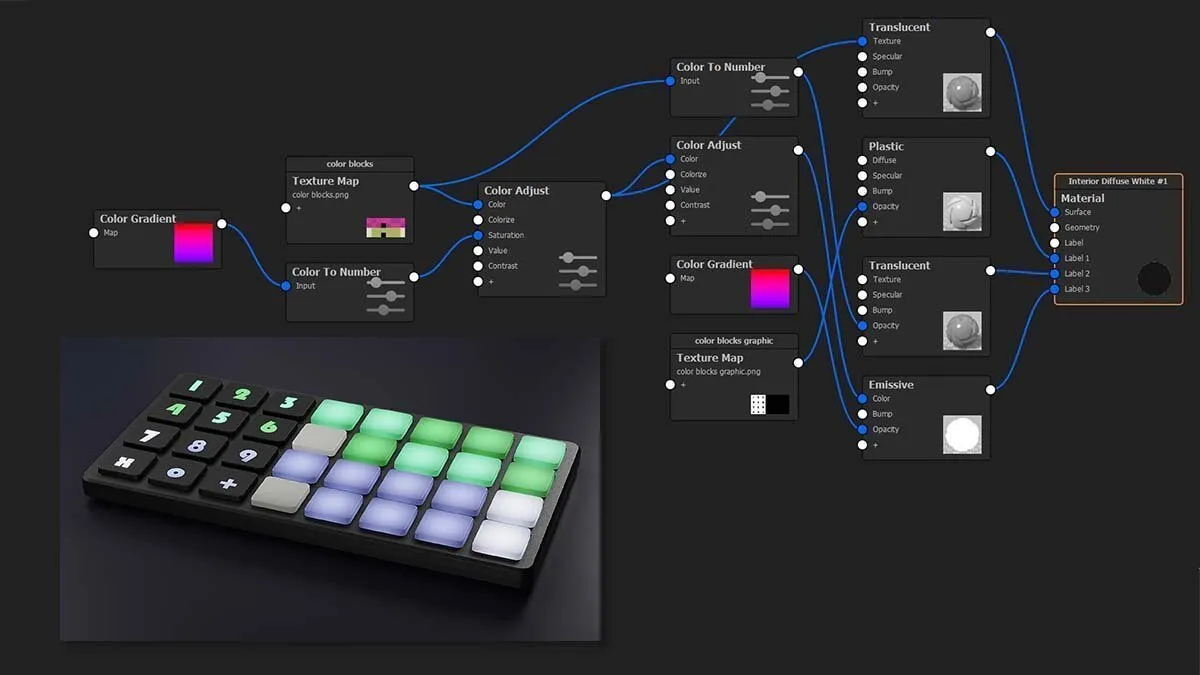

This is what the silicone buttons material graph looks like in KeyShot
This is what the silicone buttons material graph looks like in KeyShot
